Industrial Hi-Flo VacuPress® Pump (10cfm)
Vacuum Pressing Made Simple (Book/DVD)
Compact 300 Vacupress® Pump (3cfm)
The Compact 300 VacuPress® Pump model is specifically designed for the small or home workshop. The Compact 300 is the perfect choice for woodworkers who want to explore the exciting possibilities of veneering and laminating with vacuum without the expense of larger systems or the need for compressed air, yet with the ability to handle a full 4’x 8′ bag.
The heart of the system is an extremely quiet, single chamber 3cfm rocking piston pump, developing 1750 lbs of pressing force per square ft. The adjustable vacuum switch monitors the vacuum level turning the pump on and off as needed.
Compact 300 VacuPress® Pump vacuum pressing bags have heat welded seams and are made from a durable, flexible 30 mil vinyl as well as 30mil polyurethane.
From the C channel bag closure to the quick disconnects, cleanable filter jar and molded bag nipple, the Compact 300 VacuPress® Pump delivers the same engineered quality and performance standards as our professional vacuum pressing line. No detail has been overlooked.
The Compact 300 VacuPress® Pump comes complete and ready to use, no additional parts are required, simply choose a VacuPress® bag to connect to. Since many woodworkers may be trying their hand at veneering for the first time, a comprehensive owner’s manual is included to assist in successful vacuum pressing.
VacuPress® Bags
Extruded Polyurethane is a state-of-the-art water clear vacuum bag material used extensively in high tech industries because it combines high puncture resistance with excellent elasticity, memory retention as well as moderate temperature resistance, up to 150 degrees repeatedly and 180 degrees occasionally. These qualities make extruded polyurethane the perfect material for daily use in the professional shop pressing flat, curved, and shaped work. If you just want the best, this is it.
VacuPress® Fliptop Table Press (Frame System)
When repetition and accessibility are priorities the VacuPress® FlipTop table press is the answer. Designed for quick and easy access, this frame system is ideal for the wood shop which presses flat and low profile curved woodwork more frequently – and can afford dedicated space for the frame system. The VacuPress® FlipTop table press brings a new level of speed and convenience to the vacuum veneering and laminating process.
VacuClamp Vacuum Pods
Arrange the VacuPress® VacuClamp vacuum pods on the work surface, connect the vacuum source, and place your work piece on top. Instantly up to 1800 lbs per sq ft of pressure is applied. One, two, three or more VacuClamp vacuum pods can be connected together. Vertically, horizontally, on any angle, or any combination makes vacuum clamping simple and versatile to use. Because the VacuClamp vacuum pods are only on the underside, access for sanding or machining is unobstructed with no clamping marks.
Parts and Accessories
Our brass bag fitting is designed to mate with the nipple attached to all our vacuum bags. Smooth on the end that goes into the bag nipple and barbed on the other to receive 3/8″ ID hose.
VacuPress® Pumps Products

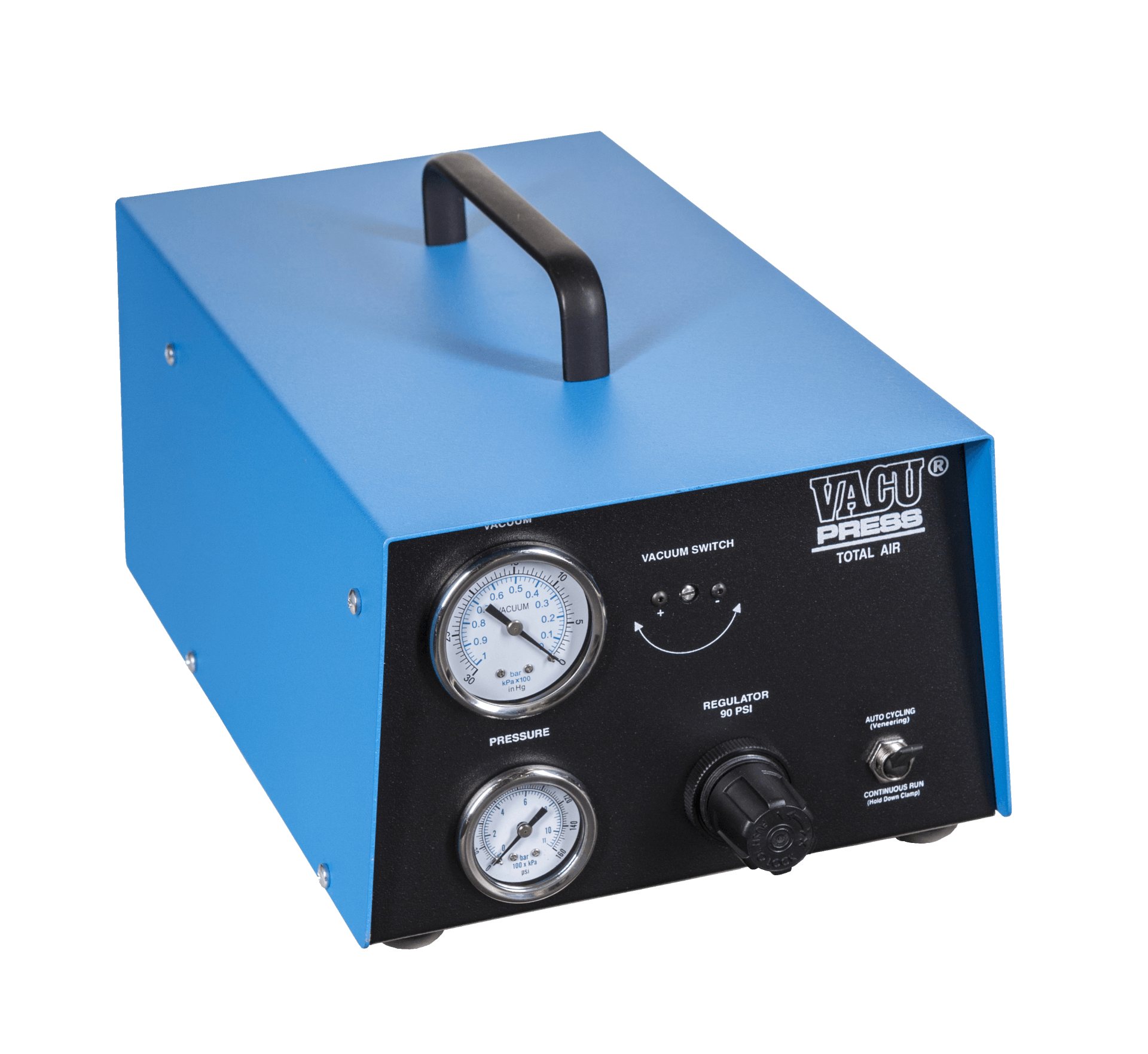

The Total Air VacuPress® Pump is the brand new addition to the VacuPress® line. The Total Air VacuPress® is modeled after the Air Powered VacuPress® with the additional feature of being completely pneumatically controlled, no electricity is needed to power or control this unit.
The Total Air VacuPress® Pump, like the Air Powered VacuPress® utilizes a venturi vacuum pump driven by standard compressed air to generate vacuum. Vacuum Pressing Systems uses only “full flow” single stage venturi vacuum pumps for maximum vacuum draw throughout the entire vacuum process. This guarantees short evacuation time and low overall compressed air usage.
VacuPress® Bags
Extruded Polyurethane is a state-of-the-art water clear vacuum bag material used extensively in high tech industries because it combines high puncture resistance with excellent elasticity, memory retention as well as moderate temperature resistance, up to 150 degrees repeatedly and 180 degrees occasionally. These qualities make extruded polyurethane the perfect material for daily use in the professional shop pressing flat, curved, and shaped work. If you just want the best, this is it.
VacuPress® Fliptop Table Press (Frame System)
When repetition and accessibility are priorities the VacuPress® FlipTop table press is the answer. Designed for quick and easy access, this frame system is ideal for the wood shop which presses flat and low profile curved woodwork more frequently – and can afford dedicated space for the frame system. The VacuPress® FlipTop table press brings a new level of speed and convenience to the vacuum veneering and laminating process.
VacuClamp Vacuum Pods
Arrange the VacuPress® VacuClamp vacuum pods on the work surface, connect the vacuum source, and place your work piece on top. Instantly up to 1800 lbs per sq ft of pressure is applied. One, two, three or more VacuClamp vacuum pods can be connected together. Vertically, horizontally, on any angle, or any combination makes vacuum clamping simple and versatile to use. Because the VacuClamp vacuum pods are only on the underside, access for sanding or machining is unobstructed with no clamping marks.
Parts and Accessories
Our brass bag fitting is designed to mate with the nipple attached to all our vacuum bags. Smooth on the end that goes into the bag nipple and barbed on the other to receive 3/8″ ID hose.
